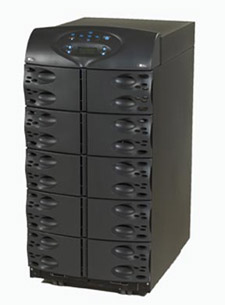

S5K Modular Series UPS

The 5K Modular is scalable from 4 to 20 KVA, offering many flexible options by adding a few standard modules. Designed to be fully configured, tested and shipped in the configuration you need, the 5K Modular also has the ability to be easily upgraded in the field to either higher VA ratings (up to 20 KVA maximum), longer runtimes or to add N+x parallel redundancy. Configurations can be cost-effectively upgraded keeping your 5K Modular current without a large reinvestment in a new system.

The optional N+x redundancy provides a fault-tolerant group of power modules and controls. The modular design is easy to upgrade so the UPS can grow with the needs of the system that is being protected.

Each of the modular components, including 4 KVA power modules, battery modules and system control modules, can be hot-swapped making it easy to increase power, extend your backup runtime or add redundancy while still providing power protection to the load.

This fault-tolerant system uses intelligent power and battery modules which take themselves off-line if there is a problem — without interrupting power to the load. Self-diagnostic capabilities simplify maintenance and troubleshooting. Each unit incorporates an internal automatic bypass.

Features

• Scalable for capacity, redundancy, or battery run time offering unbelievable flexibility
• Built-in intelligence is provided for each individual module using microprocessor controls, increasing functionality, communications and reliability
• N+x parallel redundancy is easily achieved by adding extra control, power and battery modules
• Any failed module will automatically take itself off-line while the other modules continue to support the connected equipment
• Multiple and simultaneous communication ports
• Variable input voltage range minimizes battery operation to increase battery life
• An automatic internal bypass for maximum availability of output power
• Continuous sinewave output
• Power factor corrected input reduces reflected distortion and optimizes utility power

PDF Files

	S5K Modular Series UPS Series Specifications
	S5K Modular Series UPS Guide Specifications
	Site Planning Databook

8K Module (4 KVA/2.8 kW) Enclosure

8 KVA/5.6 kW, 12 KVA / 8.4 kW and 16 KVA / 11.2 kW
