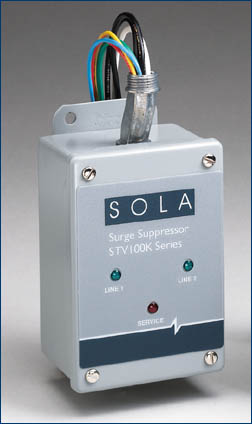

STV100K Hardwired Surge Series

Sola/Hevi-Duty’s STV100K series Surge Protection Device (SPD's) is a hard wired SPD designed to be installed at the service entrance, branch panels or dedicated sensitive electronic loads. These surge protector feature all mode protection, LED and audible alarm status indication, sinewave tracking and Form C dry contacts. The STV100K series surge protector also contains the highest levels of safety built into the product including thermal fusing and a fault current fusing level of 65 kAIC.

These surge protector meet UL 1449, 2nd Edition standards and provide AIC ratings for appropriate and safe distribution panel use. These Surge Protection Devices come in a compact design allowing the user to install the product as close as possible to the sensitive load.

Surge protection is one part of a total power quality solution. Surge protector products can be used alone or in conjunction with other Sola/Hevi-Duty products to solve more complex power quality problems.

Features

  • 100,000 amp peak current rating to provide protection
    against severe transients
  • Low clamping levels for more effective protection
  • 65 kAIC fault current fusing level provides safety and NEC conformance
  • LED status and audible alarms
  • Listed to UL 1449, 2nd Edition, UL 1283.
  • Compact, rugged metal NEMA 12 enclosure
  • Thermal fusing prevents the MOV protection from overheating when exposed to high current levels.

PDF Files

STV100K Hardwired Surge Series Specifications
STV100K Manual
STV Dimensional Drawings



STV100K Hardwired Surge Series

Catalog Number Input Voltage
STV100K-27Y 480Y/277V

Three Phase Wye 4 wire + Ground

STV100K-24D 240V

Three Phase D 3 wire + Ground

STV100K-48D 480V

Three Phase D 3 wire + Ground

STV100K-10D4 240-120CT

Three Phase D 4 wire + Ground

STV100K-24D4 480/240CT

Three Phase D 4 wire + Ground
