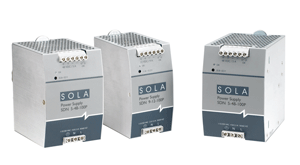

SDN-P Series Power Supply

The SDN DIN Rail power supplies provide industry leading performance. Sag Immunity, transient suppression and noise tolerant, the SDN series ensures compatibility in demanding applications. Power factor correction to meet European directives, hazardous location approvals and optional redundant accessories allow the SDN series to be used in a wide variety of applications. Wide operation temperature range, high tolerance to shock and vibration and reliable design make the SDN series the preferred choice of users everywhere.

Features

  • Power Factor Correction (per EN61000-3-2)
  • Auto Select 115/230 Vac, 50/60 Hz Input
  • Single Phase models meet SEMI F47 Sag Immunity
  • Class 1, Div 2 Hazardous Locations
    • ATEX approval on 2.5 through 10A, 24 Vdc Single Phase Models
  • Improved metal mounting clip
  • DC OK Signal
  • Adjustable Voltage
  • SDN10-24-100P New Compact width (3.26”)
  • Parallel Capability standard on all units
  • Industrial grade design
    • 10oC to 60oC operation without derating. Indefinite short circuit, overvoltage and overtemperature
    • Powers high inrush loads without shutdown or foldback
    • Rugged metal case and DIN connector
  • SDN2.5-24-100P and SDN4-24-100LP meet NEC Class 2
  • Narrow width on rail for space critical applications
  • User-friendly front panel.
    • Large, rugged, accessible, multiple connection screw terminations
    • Easy installation
  • Broad range (2.5 A through 40 A) of product to fit almost any application
  • Single and three phase inputs available
  • 12 Vdc and 48 Vdc single phase models available
  • Highly efficient >90% switching technology
  • High MTBF and reliability
  • Five year warranty
  • RoHS compliant

PDF Files

SDN-P Series Power Supply Specifications



SDN-P Series Power Supply

Catalog Number Output Current Output Voltage Output Power
12 VDC
SDN 9-12-100P 9.0A 12 VDC 108W
SDN 16-12-100P 16.0A 12 VDC 192W
24 VDC
SDN 2.5-24-100P 2.5A 24 (22.5-28.5 adj) VDC 60W
SDN 4-24-100LP 3.8A 24 (22.5-28.5 adj) VDC 92W
SDN 5-24-100P 5A 24 (22.5-28.5 adj) VDC 120W
SDN 10-24-100P 10A 24 (22.5-28.5 adj) VDC 240W
SDN 20-24-100P 20A 24 (22.5-28.5 adj) VDC 480W
